Commercial Meat Bone Saw Troubleshooting Guide

Table of Contents

A practical guide to diagnosing common commercial meat bone saw problems safely. Learn what to check when cuts become rough, the blade wanders, vibration increases, bone dust builds up, or the machine will not start.

Quick Diagnosis Before Troubleshooting

Commercial meat bone saw prepared for a safe inspection

Commercial meat bone saw troubleshooting should begin with a safe, simple inspection: stop the machine, disconnect it from the power supply, and wait until the blade has fully stopped. Do not attempt to correct blade tracking, remove trapped product, clean the blade area, or inspect internal moving parts while the saw is connected to power.

Most cutting problems come from a small group of causes: a dull or damaged blade, incorrect blade tension or tracking, unsuitable product temperature, poor table or fence setup, accumulated residue, loose components, or an electrical supply issue. Start with the symptom that appeared first. For example, a saw that previously cut cleanly but now requires more feed force commonly needs a blade inspection. A problem that starts immediately after a blade change often points to blade installation, tension, or tracking.

Before making adjustments, record what the operator observed: the product type, approximate product condition, blade condition, whether the problem is constant or intermittent, and whether it began after cleaning, blade replacement, relocation, or service. This information makes diagnosis faster and gives a service technician useful context if the issue cannot be resolved on site.

Use the machine’s own operating manual as the authority for guard positions, approved blade type, tensioning procedure, lubrication points, electrical requirements, and service intervals. Machine designs differ, so general guidance should not override the manufacturer’s instructions.

Machine Will Not Start or Stops Unexpectedly

Machine Will Not Start or Stops Unexpectedly

If a commercial meat bone saw will not start, first check the conditions that are intended to prevent operation. Confirm that the emergency stop has been released, guards and doors are fully closed and correctly positioned, and any interlock system is engaged. Many machines are designed not to run when a door or blade guard is open or misaligned.

Next, verify the external electrical supply. Check that the machine is connected to the correct supply, that the plug and cable show no visible damage, and that the local isolator, breaker, or protective device has not tripped. Do not repeatedly reset a breaker or bypass an interlock. A repeated trip, hot plug, damaged cable, burning smell, or visible electrical damage requires investigation by a qualified technician.

If the motor starts but stops during cutting, reduce the load only after safely stopping the machine and inspecting the blade and product. A dull blade, very hard product, excessive feed pressure, or a mechanical obstruction can increase load. Product should be prepared and handled in accordance with the machine manual and the operation’s food safety procedures. Do not force material through the blade to compensate for poor cutting performance.

Where the supply and safety devices appear normal but the saw remains inoperative, record the model, serial number, symptom, and any display or indicator condition before contacting service support. This is more useful than disassembling electrical covers without the required training.

Poor Cut Quality, Slow Cutting, or Rough Surfaces

Sharp commercial meat band saw blade and cutting fence

A sharp, correctly installed blade should cut with controlled, steady feed pressure. When operators need to push harder, cuts become rough, or product surfaces show tearing, splintering, or excessive marks, inspect the blade first. Look for missing teeth, damaged tooth set, corrosion, bent sections, heavy residue, or obvious dullness. Replace a worn or damaged blade with the correct blade specification for the machine and application.

Do not judge blade condition by age alone. Blade life varies with the material being cut, product temperature, sanitation routine, feed technique, and whether foreign material has contacted the blade. A blade can be unsuitable for continued use even if it has only been installed for a short period.

Product preparation also affects the cut. Product that is unstable, poorly supported, or in an unsuitable condition for the operation can move during the cut and produce inconsistent results. Set the guide or fence carefully, keep the worktable clean, and use the machine’s approved pusher or handling method. Operators should keep hands clear of the blade path at all times.

For consistent portion work, use a repeatable fence setting and a steady, controlled feed. The practical cutting guidance in meat band saw cutting techniques for consistent portions explains how blade condition, product stability, guide settings, and feeding technique work together.

If poor cuts continue after a correct blade replacement and setup check, inspect the guides, wheels, and table alignment according to the manual. Persistent cutting issues can indicate wear or misalignment that should be assessed by trained service personnel.

Blade Drift, Wandering Cuts, and Uneven Portions

Blade Drift, Wandering Cuts, and Uneven Portions

Blade drift describes a cut that moves away from the intended line or fence setting. It can lead to uneven portions, more trimming, and inconsistent presentation. Do not compensate by twisting the product or applying side pressure to the blade. Side loading can worsen the cut and may damage the blade.

First, inspect the blade for wear, tooth damage, bends, and residue. Then check that it is installed in the correct direction and that tension and tracking have been set using the machine’s specified procedure. A blade that is not correctly tensioned or tracked may move inconsistently through the product or fail to remain correctly positioned on the wheels.

Examine the upper and lower blade guides for product buildup, damage, and correct adjustment. Guides should support the blade as intended by the manufacturer without creating unnecessary friction. Also confirm that the fence is secure, the table is clean, and the product is supported flat against the guide where the cutting method requires it.

Uneven portions are not always a mechanical fault. Changing product shape, unstable pieces, inconsistent starting positions, and rushed feeding can all create variation. Establish a simple operator routine: inspect the blade before production, set the guide with a measured reference, make a test cut where appropriate, and check the first pieces before continuing a batch.

Excessive Vibration or Unusual Noise

Excessive Vibration or Unusual Noise

A change in vibration or noise deserves immediate attention. Stop the saw and isolate power before inspection. Check whether the machine is standing level and stable, whether its feet or mounting points are secure, and whether the worktable, fence, guards, and access panels are properly fastened. Loose parts can create noise and may affect cutting accuracy.

Inspect the blade for cracking, kinks, missing teeth, or incorrect seating. A damaged blade should be replaced, not straightened or repaired for reuse. Check for visible product debris around accessible guides, wheels, and the lower housing area, following the cleaning instructions for the machine. Built-up residue can interfere with normal movement and sanitation.

Do not remove guards or dismantle wheel, motor, bearing, or drive components to investigate a persistent mechanical sound unless you are authorized and trained to do so. Grinding, scraping, repeated knocking, wheel wobble, or vibration that remains after the blade and external fasteners have been checked may indicate a service issue. Continuing to operate in that condition can increase component damage and create a safety risk.

Routine inspection is the best control. Review the operational checks in commercial bone saw safety and maintenance protocols and adapt the frequency to your production schedule, machine manual, and hygiene procedures.

Excessive Bone Dust and Product Residue

Cleaning accessible areas of a commercial meat band saw

Some bone dust is an expected by-product of cutting bone, but a visible increase can indicate that the cutting process needs attention. Start with the blade. A dull, damaged, dirty, or unsuitable blade can produce a less controlled cut and increase residue. Use only the blade type and dimensions approved for the specific saw.

Product preparation and handling matter as well. Keep the work surface clean, position the product securely, and use steady feed pressure. Excessive force can make the cut less controlled. Avoid repeated passes through the same area unless the cutting procedure requires them, and do not use the saw to cut material outside its intended application.

Cleaning between production tasks helps prevent residue from being carried into later cuts. After isolating the machine, follow the manufacturer-approved process for removing food debris, washing food-contact areas, sanitizing as required by the site’s program, drying, and reassembling. Pay close attention to blade guards, guides, table surfaces, and accessible collection areas, while following the manual’s instructions for safe blade handling.

For a closer review of contributing factors, see how to reduce bone dust when using a meat band saw. The aim is a controlled cutting process and appropriate hygiene management, not an unsupported promise that bone dust can always be eliminated.

Blade Breakage, Derailment, and Tracking Problems

A broken, derailed, or repeatedly mis-tracking blade is a stop-work condition. Switch off and isolate the machine. Do not attempt to catch, refit, or tension a moving blade. Once the saw is safe, follow the manual’s blade removal procedure and wear the required protective equipment for blade handling.

Before fitting a replacement, inspect accessible parts for common causes: incorrect blade size or type, incorrect blade direction, damage from previous use, accumulated debris, guide problems, and incorrect tension or tracking. Confirm that the replacement blade matches the machine specification. A blade that is too long, too short, or otherwise incompatible should not be forced onto the wheels.

After installation, set tracking and tension only as specified for that model. Refit all guards and complete the required operational checks before processing product. If a newly installed, correct blade repeatedly leaves the wheels, do not continue making adjustments beyond the published procedure. Wheel alignment, guide condition, worn parts, or another mechanical cause may require a qualified technician.

Keep a basic blade log for high-use operations. Record installation date, reason for replacement, visible damage, and recurring symptom. This can reveal patterns such as early damage after a particular product type, cleaning method, or shift practice and supports better purchasing and maintenance decisions.

Cleaning, Maintenance, and When to Call for Service

Effective troubleshooting is supported by a routine that prevents avoidable faults. At the start of each shift, inspect the blade, guards, guide setting, fence, table condition, power cable, and emergency stop. During operation, stop the machine if cut quality changes, vibration develops, a guard is damaged, or product accumulates in an area that should be kept clear.

At the end of production, isolate the machine and complete the documented cleaning and sanitation process. Cleanliness is both a food safety requirement and a reliability issue: residue can conceal blade damage, interfere with movable parts, and make inspection less effective. Do not use cleaning chemicals, water pressure, or tools in ways that conflict with the machine manual or your site’s procedures.

Schedule regular service based on machine use, operating conditions, and manufacturer guidance. A service visit is appropriate when there are repeated electrical trips, damaged safety devices, continuing vibration, wheel or bearing concerns, persistent tracking faults, damaged guards, or cutting problems that remain after normal blade and setup checks.

When reporting a fault, provide the saw model and serial number, blade specification, a clear description of the symptom, when it started, the product being cut, and photographs where safe and useful. Accurate information helps the supplier determine whether the next step is an operator adjustment, replacement part, blade change, or technical service.

How to Reduce Bone Dust When Using a Meat Band Saw

Table of Contents

Bone dust cannot always be eliminated when cutting bone, but it can usually be reduced through correct blade selection and condition, stable product preparation, controlled feeding, proper guide and tension settings, and a disciplined cleaning routine.

The short answer: control the cutting source

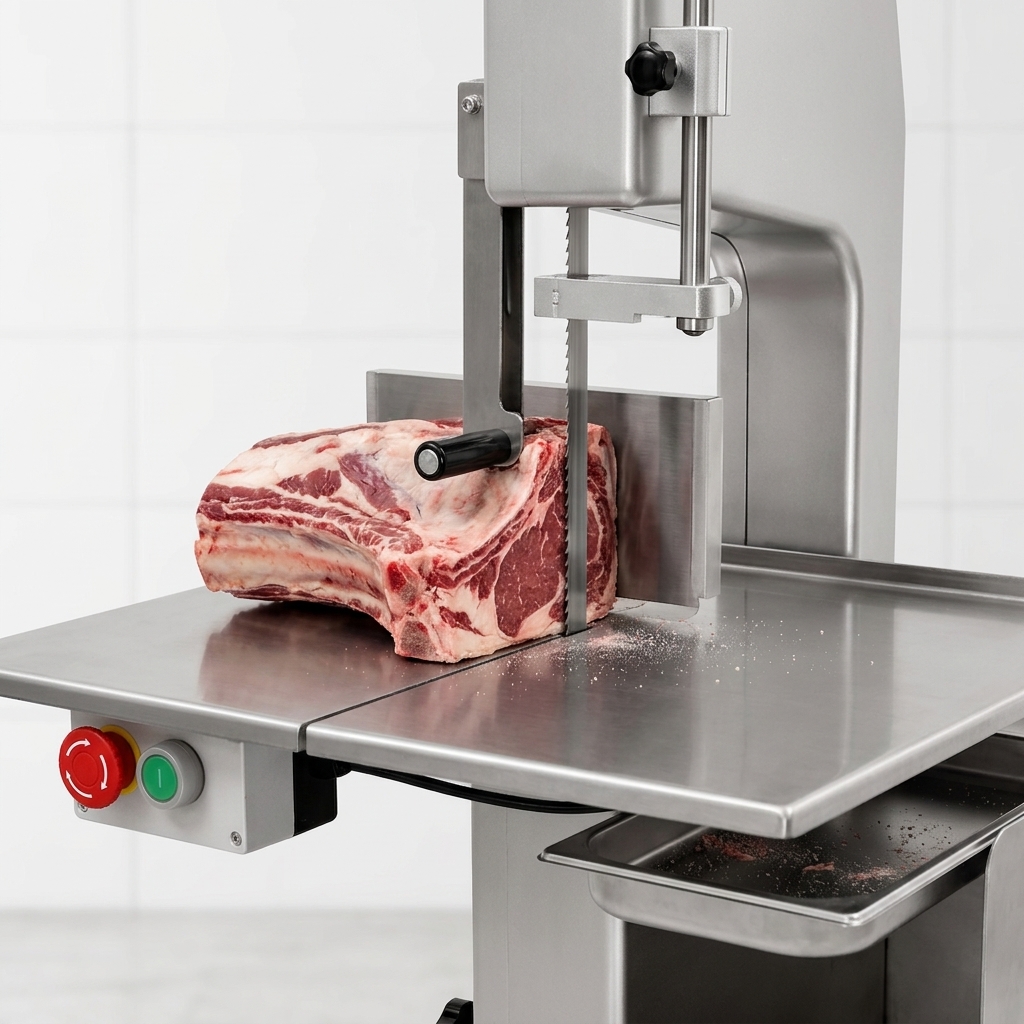

Controlled setup for cutting bone-in meat on a commercial band saw

To reduce bone dust when using a meat band saw, use a sharp and suitable blade, keep the product stable and properly chilled, feed it through the blade at a steady rate, and keep the saw correctly adjusted and clean. Bone dust is usually created when the blade crushes, rubs, wanders, or tears through bone instead of making a controlled cut.

Some fine bone particles are a normal result of cutting bone-in meat, especially on dense or irregular bones. The practical objective is not to promise a completely dust-free cut. It is to minimise visible residue, prevent it from spreading around the cutting area, and remove it safely before the product moves to the next process.

For commercial operators, this starts with a documented routine. Inspect the blade and guides before production, prepare product consistently, train staff to avoid forceful feeding, and clean the machine at the right intervals. These basic controls also support safer operation. Review the commercial bone saw safety and maintenance protocols alongside your machine manual and site procedures.

What causes bone dust on a meat band saw?

Bone dust is the fine residue and small fragments released at the cut line. It can remain on the meat surface, collect on the table, or enter seams and hard-to-clean areas of the saw. Larger chips and splinters are related concerns, but they are not exactly the same as fine dust.

The most common causes are mechanical and operational:

  • A dull or damaged blade: A worn cutting edge rubs and crushes material, increasing friction and fragmented residue.
  • An unsuitable blade pattern: Blade tooth form and spacing should suit the product, including its bone density, cut size, and whether it is fresh or tempered. A one-size approach may not produce the cleanest result on every item.
  • Incorrect tension or guide alignment: A blade that is not set according to the machine manufacturer’s instructions can deflect or vibrate during the cut.
  • Forced or uneven feeding: Pushing too hard can cause the blade to bind, while twisting the product can pull the cut line away from the intended path.
  • Unstable product: Loose pieces, uneven surfaces, and thawed or soft product are harder to control and can lead to chattering at the bone.
  • Poor housekeeping: Dust from an earlier cut can be transferred to subsequent portions if the table, guides, pusher, and surrounding area are not cleaned promptly.

Look at the pattern, not just the amount. Residue concentrated on one side may point to drift, guide wear, or uneven feeding. A sudden rise after a consistent production period may indicate a blade that needs inspection or replacement.

Start with the right blade condition and specification

Inspection of a meat band saw blade and guide assembly

Blade condition is one of the strongest controllable factors in bone-dust reduction. Inspect a blade before use and whenever the cut quality changes. Replace a blade that is visibly damaged, has missing or bent teeth, shows corrosion, tracks poorly, or requires extra force to cut. Continuing to use a poor blade can increase residue and make the operation less predictable.

Select the blade specification using the saw manufacturer’s approved range and the actual products being cut. Discuss tooth configuration, blade width, and material with the blade supplier or equipment provider. The correct choice depends on factors such as whether you cut poultry, ribs, joints, frozen blocks, or other bone-in portions. Do not assume that a blade that performs well on one product will be ideal for all products.

Install and tension the blade only as stated in the equipment manual. Over-tensioning can place unnecessary stress on the blade and machine components. Under-tensioning can contribute to blade wander and vibration. After fitting a blade, confirm that it tracks correctly and that the guards are in place before production begins.

If repeated dust problems coincide with frequent blade changes, tracking difficulty, or inconsistent cuts, inspect the full system rather than blaming the blade alone. The commercial bone saw buying checklist for butchers is also useful for reviewing blade compatibility, cleaning access, service requirements, and the overall fit of a saw for your workload.

Prepare meat and bone for a cleaner cut

Chilled bone-in meat prepared for stable band saw cutting

Product condition affects how smoothly the blade enters and exits bone. Prepare items to create a stable, repeatable presentation on the saw table. Remove loose packaging, ties, labels, and any non-product material before cutting. Check for foreign objects and separate product that is outside your planned cutting condition.

Keep product within the temperature range required by your food-safety plan and local rules. In many operations, firmer, well-chilled product is easier to hold and cut consistently than product that is soft or partially thawed. However, the right condition depends on the specific protein, cut, and process. Avoid using temperature changes solely to solve a cutting problem without checking product-quality and food-safety requirements.

Trim loose flaps where appropriate, and place the broadest stable surface on the table. For irregular joints or small pieces, use an approved pusher or holding device rather than trying to hold the product close to the blade. Never use hands or improvised tools to force the item through the cut.

Plan the cut line before starting. A deliberate route through the bone reduces mid-cut stopping, twisting, and re-cutting. Where an item must be divided into multiple portions, decide the order that maintains the best support for the remaining piece.

Use controlled feed technique

A well-maintained saw can still create excess bone dust if the product is fed poorly. The operator should guide the product smoothly into the blade with consistent, moderate pressure. Let the blade cut; do not use sudden force to overcome resistance.

Keep the product flat and supported on the table. Feed it in a straight line, without rocking or twisting. Turning a joint while it is already engaged with the blade can widen the kerf, create friction, and leave a rougher surface. If the piece moves unexpectedly, stop feeding, move it safely clear as allowed by the procedure, and reposition it before continuing.

Use the fence, gauge, pusher, or other approved accessory when it helps maintain a repeatable position. This is particularly important for portion cutting, where a consistent setup can reduce both operator variation and unnecessary rework. Set the upper blade guide as close as practical to the product while retaining safe clearance, following the machine instructions.

Operators should treat an unusual cutting sound, vibration, increased resistance, or a change in cut appearance as a reason to pause and inspect. These signs may indicate blade wear, guide adjustment issues, product movement, or a developing mechanical fault. Continuing through the problem usually creates more waste and more cleaning work.

Check machine setup, guides, and work area

Before the shift, check that the saw is stable, the table is clean, and the work area provides enough room to load, cut, and remove product without crowding. Poor workspace flow can encourage rushed handling and awkward product angles.

Inspect the blade guides, guide adjustment mechanism, blade scrapers where fitted, wheels, door closures, and guards according to the manufacturer’s maintenance instructions. These parts help control blade travel and contain residue within the intended cutting area. Do not remove guards, bypass interlocks, or modify the machine to gain access or speed up cleaning.

Confirm that the fence or gauge is secure if it is being used. A loose or poorly positioned guide can cause inconsistent portions and repeat cuts. Check that product trays and collection containers are placed so that cut pieces can be moved without passing over unclean areas.

Only use an extraction or collection method if it is designed for the equipment and accepted by your food-safety and workplace-safety procedures. An improvised vacuum attachment may obstruct the work area, create a cleaning issue, or interfere with the machine. Never use compressed air to blow bone dust from a food-processing saw; it can spread residue into the air, onto nearby surfaces, and into areas that are difficult to clean.

Remove dust safely and clean between tasks

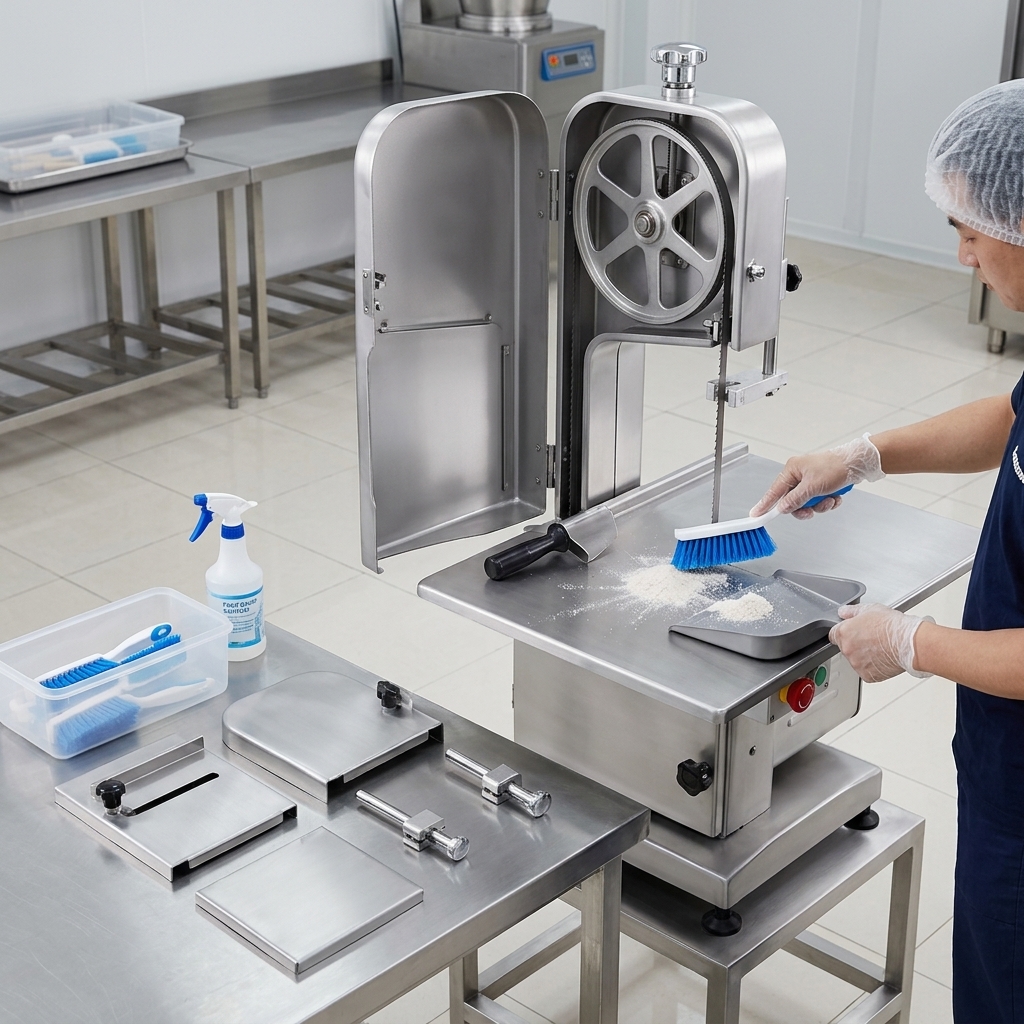

Safe cleaning of a commercial meat band saw after bone cutting

Dust control is incomplete if residue remains on the machine or is carried onto finished portions. Build cleaning into the production routine rather than waiting until visible buildup is heavy. The frequency should reflect the products handled, production schedule, local requirements, and your site sanitation plan.

Before cleaning, stop the machine, isolate it from its power source, and follow the lockout or isolation procedure required at your site. Wear suitable protective equipment. Use tools that are approved for the task to remove visible debris from the table, fence, pusher, blade area, collection points, and accessible guards. Treat the blade as sharp even when it is stationary.

Then clean and sanitise the machine according to its manual and your validated sanitation procedure. Food-contact surfaces, splash zones, and residue collection areas all need attention. Avoid directing high-pressure water at bearings, electrical parts, or areas that the manufacturer identifies as unsuitable for washdown. Reassemble the machine correctly, check that all guards are secure, and allow required surfaces to dry or drain before restarting.

The cleaning sequence of remove residue, wash, rinse, sanitise, and inspect is a useful operating principle across food equipment. For a broader example of structured sanitation controls, see this guide on cleaning and sanitising commercial food-processing equipment. Always adapt the procedure to the bone saw manual, chemicals in use, and your own food-safety plan.

Common mistakes that increase bone dust

The following practices often make a bone-dust problem worse:

  • Waiting too long to replace a poor blade. Extra feed pressure is not a substitute for a sharp, properly selected blade.
  • Using the same settings for every product. Different bone-in products may need different blade choices, guide positions, or handling methods.
  • Cutting unstable pieces without a pusher or support. Product movement causes inconsistent cuts and raises safety risks.
  • Twisting the product during the cut. This increases blade side loading and can create rough edges and residue.
  • Allowing residue to accumulate. Existing dust can spread to later cuts and conceal areas that need cleaning.
  • Blowing debris away with air. This spreads contaminants instead of removing them under control.
  • Ignoring recurring machine symptoms. Blade drift, vibration, rubbing noise, or poor tracking need investigation before they become a larger maintenance issue.

Record recurring issues by product type, operator, blade batch, and shift where practical. This makes it easier to distinguish a training issue from a blade-selection or machine-condition issue. A short log can be more useful than relying on memory when deciding what to change.

Daily checklist for lower bone dust

Use this practical checklist at the start of production and whenever cut quality changes:

  1. Confirm the blade is clean, undamaged, sharp enough for the job, and correctly installed.
  2. Check blade tracking, tension, guides, guards, table condition, and cutting accessories according to the machine manual.
  3. Prepare product at the required handling condition and remove packaging or foreign material.
  4. Set up the fence, gauge, pusher, and product collection area for a stable, direct workflow.
  5. Make the first cuts with controlled feed pressure and inspect the cut surface and residue pattern.
  6. Pause if the saw vibrates, pulls to one side, requires unusual force, or leaves a noticeably rough cut.
  7. Remove residue using the approved isolation and cleaning procedure at planned intervals and between incompatible tasks.
  8. Record blade replacement, adjustments, cleaning, and unresolved defects for the next shift or maintenance team.

A consistent routine helps operators reduce avoidable bone dust without compromising safe handling or sanitation. The correct final settings will always depend on the individual saw, blade specification, product type, and operating procedures supplied by the manufacturer and your site.

Commercial Bone Saw Machine Buying Checklist for Butchers

Table of Contents

A commercial bone saw should match the products you cut, daily workload, available space, cleaning routine, electrical supply, and service requirements. This checklist helps butchers compare machines on practical operating factors before purchase.

Quick answer: what to check before buying

Commercial bone saw machine in a clean butcher preparation area

The right commercial bone saw machine is the one that safely handles your usual product size, temperature, and daily cutting volume without creating a difficult cleaning or service burden. Before comparing prices, confirm the meat and bone-in products you will cut, the largest product dimensions, the required bench or floor space, local electrical supply, blade availability, and the safety procedures your team can consistently follow.

For most butcher shops, meat counters, restaurants, and small processing rooms, the buying decision should be based on workflow rather than motor ratings alone. A machine may appear suitable on paper but still be a poor fit if its worktable is too small, its cutting clearance does not accept your typical cuts, or replacement blades are difficult to source.

Use this bone saw machine buying checklist to create a written specification before requesting quotations. Ask each supplier to confirm the supplied configuration, compatible blade dimensions, electrical requirements, cleaning instructions, available parts, and service process for your market.

What is a commercial bone saw machine?

A commercial bone saw machine, often called a meat band saw or butcher band saw, uses a continuous band blade to portion meat, bone-in cuts, poultry, fish, or frozen products. It is commonly used where consistent portions and clean, repeatable cuts are needed before retail display, further processing, or kitchen preparation.

It is not a general-purpose workshop saw. Food-contact construction, guarding, blade tensioning, worktable design, washable surfaces, and safe handling procedures are central to its intended use. The correct machine must also suit the condition of the product. Fresh bone-in meat, chilled poultry, and frozen blocks can behave very differently during cutting.

Operators should follow the machine manual, their local food hygiene requirements, and workplace safety rules. A bone saw is only one part of the process: receiving, chilled or frozen storage, preparation space, packaging, cleaning tools, and staff training all affect the result.

1. Start with your products and cutting workload

Butcher reviewing products before selecting a commercial bone saw

List what the machine will cut during a normal day, not only the occasional difficult item. Include product type, whether it is fresh, chilled, tempered, or frozen, typical dimensions, the heaviest pieces, and the desired finished portion. This information is more useful than a vague request for a “powerful” saw.

Questions to answer before selecting a machine

  • Which products will be cut: beef, pork, lamb, poultry, fish, ribs, shanks, chops, or frozen blocks?
  • Are products normally fresh or chilled, fully frozen, or partially tempered before cutting?
  • What are the maximum height and width of the products at the cutting station?
  • How many cutting sessions occur in a day, and how long does each session last?
  • Do you need repeated portions of a fixed thickness, or flexible one-off cuts?
  • Will the same machine be used by several operators across shifts?

Frozen material generally requires a more deliberate selection process because hardness, product shape, and blade tooth configuration affect cutting behaviour. Do not assume that a saw suitable for fresh bone-in products will be appropriate for every frozen item. Review the practical differences in this guide to choosing a bone saw for fresh versus frozen meat before finalising the intended application.

Be realistic about peak periods. A machine chosen for a few occasional cuts may not suit a busy counter preparing multiple product lines before service. Conversely, selecting a large machine for a compact operation can waste valuable space and complicate cleaning.

2. Choose tabletop or floor configuration

Tabletop and floor commercial bone saw configurations in a cutting room

The machine footprint should suit the cutting area, operator movement, product flow, and cleaning access. Tabletop machines can be practical where a stable, suitably sized workbench is available and cutting demand is moderate. Floor models may suit operations that need a dedicated cutting station, a larger working area, or more room to manage larger products.

Measure more than the installation footprint. Leave practical space for product infeed and discharge, packaging trays, cleaning access, and safe operator positioning. Consider where chilled or frozen product arrives, where it waits before cutting, and where finished portions move next. A saw placed in a narrow route can create congestion and increase handling risk.

The bench or floor must support the machine securely and remain stable in use. In wet food-processing areas, assess drainage, splash control, lighting, and the distance to a suitable handwashing and cleaning area. If the machine is expected to move for cleaning, check how that movement can be done safely.

For a more detailed layout comparison, see tabletop versus floor bone saw considerations for commercial operations. The best format is not automatically the largest one; it is the one that provides adequate product support and safe working space in your actual room.

3. Check cutting clearance and worktable support

Cutting clearance is the usable space available for the product around the blade and under the upper guide assembly. It must accommodate the largest items you plan to cut with enough room to position them safely. Do not estimate this from product photographs or overall machine dimensions; request the manufacturer’s stated usable cutting dimensions for the exact model.

The worktable should give the operator stable support while keeping the product under control. Review the fence or thickness guide if uniform portions are important. It should be straightforward to set, easy to clean, and secure during use. Also consider whether the product can be supported without operators placing hands close to the blade path.

Bring a dimensioned product list to the supplier discussion. Include items such as large bone-in joints, long rib sections, poultry frames, or frozen blocks that may be awkward to manoeuvre. If products are received in cartons or bags, make sure the material is removed and the product is properly prepared according to your process before it reaches the saw.

A good specification states the maximum product envelope, the typical cut thickness range required by the business, and the need for a suitable guide or fence. It should not rely on assumptions such as “standard butcher cuts.”

4. Confirm blade compatibility and cutting setup

Inspection of a replacement blade for a commercial meat band saw

The blade is a consumable working component, not an afterthought. Before purchase, confirm the required blade length, width, tooth pitch, material specification, and approved replacement options for the model being considered. Keep these details with the machine records so that the team does not order an incompatible blade later.

Blade selection should reflect product hardness and the type of cut. A tooth pattern that works well for one application may not be the best choice for another. Rather than selecting by appearance alone, discuss the product list with the supplier and follow the machine manufacturer’s guidance. This commercial meat band saw blade selection guide explains why blade dimensions and tooth pitch should be matched to the saw and application.

Ask how blade tension is set and checked, how guides are adjusted, and which components should be inspected before each shift. Poorly fitted, worn, or incorrectly tensioned blades can affect cut quality and may create avoidable operational risk. Operators should never attempt improvised substitutions or adjustments beyond the manufacturer’s instructions.

Plan a controlled blade inventory. Keep the correct replacement blades in clean, protected storage; label them by model and specification; and establish a documented process for changing and disposing of blades. Your local procedures should address safe handling of sharp components and food-area hygiene.

5. Assess safety, cleaning, and sanitation

A commercial bone saw should be selected with safe daily use and complete cleaning in mind. Examine the blade guard arrangement, upper and lower blade coverage, product guide, emergency stopping method, non-slip footing or stable mounting, and access to areas that need routine cleaning. The safety features must be used correctly; they do not replace training, supervision, and a documented safe operating procedure.

Ask the supplier to explain the normal shutdown, isolation, disassembly, cleaning, rinsing, sanitising where required by your procedure, drying, reassembly, and pre-use inspection steps. Avoid equipment that cannot be practically cleaned within the time and staffing available. Areas around blade guides, wheels, doors, worktables, and product guides deserve particular attention because residue can build up during service.

Operators should be trained to use the pusher or product-handling tool supplied or specified for the machine, keep hands away from the blade path, avoid loose clothing and jewellery, and stop work if guards, blades, or controls are not in proper condition. Cleaning and blade changes should only be performed after the machine has been stopped and isolated according to the manual and site procedure.

Use essential commercial bone saw safety and maintenance protocols as a starting point for building your routine. Your site plan should also comply with local occupational safety and food hygiene obligations.

6. Confirm power and installation requirements

Confirm the electrical requirements for the exact machine and destination market before ordering. Check the rating plate specification or formal supplier documentation for voltage, frequency, phase, plug arrangement, and any local installation requirements. Never assume that an available outlet is suitable because the plug appears similar.

Share the site electrical details with the supplier early. If a qualified electrician is required to prepare the circuit, arrange that work before delivery. The electrical connection, protective device, grounding arrangements, and any local inspection requirements should be handled in accordance with applicable regulations and by qualified personnel where required.

Also plan the physical delivery route. Measure doorways, corridors, lifts, ramps, and the final installation point. Confirm whether the machine is shipped assembled, what must be fitted on site, and who is responsible for commissioning. Installation should include a stability check, verification of guards and controls, and operator familiarisation before production begins.

7. Review service, spare parts, and total ownership

The purchase price is only one part of ownership. A practical commercial bone saw program includes replacement blades, routine inspection, cleaning supplies, operator training, planned maintenance, and a clear route for obtaining parts or technical support.

Ask the supplier which wear items are expected to need routine attention, how spare parts are identified, how technical questions are handled, and whether manuals are supplied in a language suitable for your operators. Request a parts list or exploded diagram where available. Keep machine serial number, model information, blade specification, purchase documents, and maintenance records together.

For distributors, multi-site operators, and private-label buyers, discuss packaging, documentation, market-specific electrical configuration, branding, and after-sales responsibilities before placing an order. A clear agreement is more valuable than assumptions about what support is included.

Finally, assess the supplier’s responsiveness during the quotation stage. If product questions about configuration, product fit, or support cannot be answered clearly before purchase, that may indicate difficulty after commissioning. Select a partner that can help you define a machine specification appropriate to your process rather than simply offering a generic model.

Final pre-purchase checklist

Use the following checklist before approving a commercial bone saw machine purchase:

  • Documented list of products, temperature condition, and maximum dimensions.
  • Expected daily and peak cutting workflow defined.
  • Tabletop or floor configuration selected for the actual layout.
  • Usable cutting clearance confirmed in writing for the exact model.
  • Worktable, fence, and product support assessed for your portions.
  • Correct blade dimensions and application-appropriate tooth configuration confirmed.
  • Replacement blade source and controlled storage plan established.
  • Guarding, product-handling method, emergency stop, and safety procedures reviewed.
  • Cleaning access and end-of-shift sanitation routine evaluated.
  • Voltage, frequency, phase, plug, and installation requirements confirmed.
  • Delivery route, final placement, and commissioning responsibilities checked.
  • Manuals, parts information, maintenance guidance, and support route confirmed.

A complete checklist reduces the chance of buying a machine that is too small, poorly matched to frozen products, difficult to clean, or unsupported in your operating market. Keep the completed document with your purchasing records and use it to compare quotations on the same basis.

How to Choose a Commercial Meat Bone Saw Machine

Table of Contents

Choose a commercial meat bone saw machine around the products you cut, the size of each cut, daily workload, available space, cleaning routine, and local power supply. A suitable machine should fit the operator’s real workflow rather than simply offering the largest table or motor.

How to choose the right commercial bone saw

Commercial meat bone saw machine in a clean food processing workspace

Choose a commercial meat bone saw machine by first defining what you will cut: fresh meat, frozen meat, bone-in portions, poultry, fish, or larger primal cuts. Then confirm the maximum product dimensions, expected cutting periods, available counter or floor space, electrical supply, cleaning process, and the support available after installation.

The best choice is not automatically the largest machine. A compact butcher counter may need a tabletop saw that is easy to position and clean. A dedicated processing room may need a floor-standing machine with a larger working area and more space around the cutting zone. In both cases, the machine, blade, guards, worktable, and operator procedures must suit the actual product and daily routine.

Before comparing models, make a simple list of your hardest product, largest product, busiest service period, staff experience level, and site limitations. This turns a broad equipment search into a practical specification that a supplier can assess accurately.

Start with the products and workflow

Fresh and frozen meat products prepared for commercial bone saw selection

Product condition has a major effect on saw selection. Fresh cuts, chilled meat, frozen blocks, and bone-in products do not present the same cutting resistance or handling requirements. A machine intended for occasional trimming of chilled cuts may not be the right fit for repeated cutting of hard frozen products. Be precise about the temperature condition in which product normally reaches the cutting station.

Also consider the cut you need to produce. Portioning ribs, cutting poultry, splitting bone-in meat, and reducing larger blocks can require different table support, clearance, blade characteristics, and operator handling. Bring sample dimensions or a written range of product sizes to the supplier discussion. The maximum width, height, and length matter more than an average piece.

Workflow is equally important. Ask whether staff will make intermittent cuts during retail service or process batches in a preparation period. A busy batch operation needs a clear route for receiving product, cutting, collecting portions, packing, and cleaning down. A poorly planned layout can slow work even when the saw itself is capable of the required cut.

For a more detailed assessment of product hardness and handling, review this guide to choosing a bone saw for fresh versus frozen meat. It is useful when one operation handles both chilled and frozen inventory.

Choose between tabletop and floor models

Tabletop and floor-standing commercial bone saw workspace layouts

The first format decision is usually tabletop versus floor-standing. A tabletop commercial bone saw can be a practical option where counter space is available, product sizes are moderate, and the cutting station must fit into a compact butcher shop, market, restaurant, or deli preparation area. The supporting bench must be stable, level, capable of carrying the equipment safely, and positioned to allow cleaning around the machine.

A floor-standing bone saw is generally better suited to a dedicated cutting area where operators need more working room, a larger table surface, or easier handling of larger products. It can also simplify workstation planning by creating a permanent processing position rather than occupying a multi-use counter.

Do not decide by footprint alone. Measure the full operating envelope, including access for loading product, using the pusher, collecting cut portions, opening removable parts for cleaning, changing blades, and allowing staff to move safely. Confirm doorways, delivery routes, floor condition, drainage arrangements, and the distance to refrigerated storage.

See the practical comparison of tabletop and floor bone saws for commercial operations before choosing a format. It can help buyers match the machine style to available room and expected workload.

Check cutting area, clearance, and machine layout

Evaluate the usable cutting area rather than relying on overall machine dimensions. The worktable must support the product securely while leaving the operator enough room to guide it with the intended pusher or feeding aid. If the product overhangs the table or cannot be held in a controlled position, the cutting task may be unsuitable for that model.

Confirm the manufacturer’s stated cutting clearance and compare it with the largest product you expect to process, including irregular shapes. A large bone-in cut may need more height or throat clearance than a regular frozen block. Allow a sensible margin rather than selecting a machine that only just accommodates the largest item.

Look at the layout of the table, fence, blade area, scrap collection zone, and product exit path. An adjustable guide can support consistent portion sizes, but it should be easy for staff to set, verify, and clean. The collection area should prevent cut pieces from falling into an unsuitable location or interrupting the operator’s movement.

Where repeatable portioning is important, establish a documented setting and check it during the shift. This is often more reliable than expecting operators to judge every cut by eye. Training, product preparation, and a stable guide setting all contribute to a consistent result.

Match the blade and electrical supply

Inspection of a commercial meat band saw blade

The blade is a working component, not an afterthought. Its dimensions must match the saw manufacturer’s requirements exactly. Blade tooth form and tooth pitch should be selected for the product being cut, especially where frozen meat, bone, or different product types are involved. An unsuitable or worn blade can reduce cut quality, increase product handling time, and place unnecessary stress on the equipment.

Ask the supplier which blade specification is recommended for your planned products, whether replacements are readily available in your market, and what the correct fitting procedure is. Keep replacement blades in suitable storage and establish a clear inspection routine. Staff should know when to stop using a blade because of damage, poor cutting performance, or other visible concerns.

This commercial meat band saw blade selection guide explains why blade size and tooth configuration need to match both the machine and the product.

Electrical compatibility also requires careful confirmation. Check the rating plate requirements for voltage, frequency, phase, plug type, and any installation requirements against the actual supply at the intended location. Do not assume that a machine supplied for one market will connect correctly in another. A qualified local professional should assess site electrical work where required by local rules.

Prioritise hygiene and practical cleaning

A commercial meat bone saw machine should be selected with the cleaning routine in mind. Meat and bone residue can collect on the table, guide, blade area, guards, wheels, and nearby surfaces. The machine should be positioned so that operators can access the parts that need cleaning without unsafe reaching or moving heavy equipment unnecessarily.

Before purchase, ask which components are removable for routine cleaning, how they are removed, whether tools are needed, and how parts should be reassembled. Request the operating and cleaning instructions for the specific model. A cleaning process that is too complex for the available shift time is less likely to be carried out consistently.

Plan cleaning as part of the work schedule rather than treating it as an extra task. Separate clean and unclean tools, use food-contact-safe cleaning and sanitising products according to their instructions, and allow parts to dry appropriately before reassembly. Follow local food hygiene regulations and your site’s documented sanitation procedures.

Also review the floor and surrounding workstation. Splash control, waste handling, drainage, handwashing access, and cleaning-tool storage all influence whether the saw can be maintained hygienically in day-to-day use.

Review operator safety requirements

Bone saw selection must include operator safety from the beginning. Confirm that the machine configuration, guards, intended pusher or product-holding methods, controls, and emergency-stop arrangements are suitable for your local requirements and workplace risk assessment. The operator needs a clear, stable position with adequate lighting and enough space to handle product without rushing.

Never treat training as optional. Operators should be trained on startup and shutdown, correct product feeding, use of guards and pushers, blade awareness, cleaning, blade replacement procedures, fault reporting, and isolation before maintenance. Supervisors should verify that the documented operating method is followed, particularly when new staff start work or product types change.

Do not use a damaged blade, missing guard, loose component, or machine that behaves unexpectedly. Remove the equipment from service, isolate it as required by site procedure, and arrange inspection by an appropriately competent person. Routine checks before a shift can identify visible issues before they become an operating problem.

For an operational reference, read the essential safety and maintenance protocols for commercial bone saw machines. Always follow the instructions supplied with the specific machine and applicable local rules.

Consider service, spares, and total operating cost

Purchase price is only one part of the decision. A dependable commercial bone saw programme also considers delivery, installation preparation, operator training, routine cleaning time, blades, wear parts, planned maintenance, repair support, and possible downtime. The lowest initial price may not offer the best value if replacement parts or technical guidance are difficult to obtain.

Ask practical support questions before placing an order: Which routine parts are expected to require replacement? How can the correct blade be identified and ordered? What information is needed when requesting technical help? Are manuals and parts diagrams available? Who will provide support in your region? Clear answers help the buyer plan rather than react to a stoppage.

For multi-site businesses, standardising equipment and consumables can simplify staff training, blade purchasing, cleaning documentation, and maintenance records. For a single site, it is still useful to keep a machine record containing model details, serial information, installation date, blade specification, service history, and reported issues.

When comparing quotations, ensure they describe the same scope. Check whether the quoted configuration, electrical version, included accessories, blade supply, documentation, packaging, shipping terms, and support arrangements are directly comparable.

Commercial bone saw purchase checklist

Use this checklist when speaking with a commercial meat bone saw machine supplier:

  • What fresh, chilled, frozen, and bone-in products will be cut?
  • What are the maximum product dimensions and approximate product weights?
  • Will cutting be occasional service work or regular batch processing?
  • Is a tabletop or floor-standing layout more suitable for the site?
  • What usable cutting area and clearance are required?
  • What blade dimensions and tooth configuration are specified for the planned products?
  • Does the site electrical supply match the machine rating requirements?
  • Can staff access all required cleaning areas and carry out reassembly correctly?
  • What training, safety procedures, spare parts, and technical support will be available?
  • Does the proposed machine fit local food hygiene and workplace requirements?

A well-defined brief helps a supplier recommend an appropriate configuration and reduces the risk of selecting a machine that is oversized, undersized, or unsuitable for the product mix. Keep product details and site photographs ready when requesting a quotation, as they can help clarify fit before delivery.

Meat Band Saw Cutting Techniques for Consistent Portions

Table of Contents

Consistent portions from a meat band saw depend on stable product temperature, correct blade condition, a repeatable guide setting, controlled feed pressure, and disciplined cleaning. This guide explains how butchers and food processors can build a reliable cutting routine.

How to Cut Consistent Portions on a Meat Band Saw

Commercial meat band saw with a thickness guide set for portion control

The most reliable meat band saw cutting technique is to prepare product to a stable cutting condition, set the fence or thickness guide before the run, keep the product supported against the guide, and feed it steadily with the correct pusher or holding device. Do not use speed or force to compensate for poor setup. Consistent portions come from a repeatable system rather than from operator judgement alone.

For butcher shops, meat processors, wholesalers, and central kitchens, the practical controls are straightforward: use a suitable and properly tensioned blade, keep the table and guides clean, square the product where possible, make a test cut, check the first pieces against the required specification, and recheck at planned intervals. Separate cutting routines may be needed for boneless chilled meat, bone-in cuts, and firm frozen product because each material behaves differently at the blade.

Before production begins, confirm the machine-specific operating procedure, guards, blade condition, electrical isolation method, and local food-safety requirements. A commercial meat band saw is often also called a bone saw, but the correct method always depends on the product and the machine manufacturer’s instructions.

What Is a Meat Band Saw?

A meat band saw is a food-processing machine that uses a continuous band blade running around wheels to cut meat and, on suitable machines, bone-in or frozen products. The worktable supports the product while a fence, guide, or measuring arrangement helps the operator set a repeatable cut width. Depending on the market, it may be described as a meat saw, butcher saw, bone saw, or commercial bone saw.

It is useful where a business needs repeated cross-cuts or portion cuts that would be slow or difficult to maintain by hand. Typical applications include cutting bone-in pieces, portioning firm blocks, preparing chops, dividing ribs, and producing uniform raw material for a downstream process. It is not a substitute for trimming, deboning, or knife-finishing work; those tasks require their own tools and trained handling methods.

The machine should be selected according to the largest product cross-section, product temperature, expected workload, available space, cleaning access, power supply, and service plan. For a broader equipment assessment, use this commercial bone saw buying checklist for butchers before comparing models.

Prepare the Product and Machine Before Cutting

Operator inspecting the guide and clean table of a commercial meat band saw

Portion consistency starts before the blade is switched on. Product that is soft, partly thawed, unevenly shaped, or not fully supported can flex during cutting. This may produce slices that vary in thickness, rough cut faces, or a cut that does not remain square. Prepare the raw material so it can sit securely on the table and travel through the blade in a controlled line.

Prepare the product

  • Use a consistent product state: Group products by chilled, firm frozen, or other approved production condition. Avoid mixing conditions in one cutting run without resetting the method.
  • Remove loose packaging and foreign material: Follow your site’s approved preparation procedure. Never cut through materials that are not intended for the blade.
  • Create a stable reference face: Where the product specification permits, square one end or trim an unstable surface before portioning the full batch.
  • Sort by size: Cutting similar-sized pieces together reduces repeated guide changes and makes inspection easier.
  • Plan for bone orientation: For bone-in products, establish the intended presentation and cutting direction before starting the run.

Prepare the machine

  • Clean and inspect the table, fence, pusher, blade area, and collection area according to the approved sanitation procedure.
  • Confirm that guards, doors, interlocks, blade guides, and the fence are correctly positioned. Do not operate equipment with a missing, damaged, or bypassed safety component.
  • Inspect the blade for obvious damage, contamination, poor tracking, or signs that it no longer cuts cleanly. Replace or service it in accordance with the manufacturer procedure.
  • Set the guide to the required nominal thickness and lock it securely. Make a measured test cut before releasing production pieces.

For detailed daily checks, cleaning sequence, and blade-related precautions, see these safety and maintenance protocols for commercial bone saw machines.

Core Meat Band Saw Cutting Techniques

Safe steady feeding technique for a commercial meat band saw

The objective is to move product through the cutting zone without twisting, lifting, rocking, or forcing it. The operator should use the machine’s intended fence, carriage, pusher, or product-holding accessory. Hands should remain outside the defined danger area at all times; use a suitable pushing device when the remaining piece becomes small or difficult to control.

1. Establish the thickness with the fence, not by eye

Set the guide to the target dimension using the machine scale only as an initial reference unless it has been verified for the current setup. Cut one or more test pieces, measure them with an appropriate tool, and adjust the fence if needed. Once accepted, keep the setting locked and document it when the product specification requires traceability.

2. Keep the reference face against the guide

Place the squared or stable face firmly against the fence throughout the cut. If the product drifts away from the guide, the slice can taper. A stable, light lateral contact is usually more useful than excessive pressure. Pressing too hard can distort soft meat or create unnecessary resistance.

3. Feed at a steady rate

Use deliberate, even forward movement. A feed rate that is too fast can lead to tearing, vibration, blade deflection, or poor surface finish. Feeding too slowly may also encourage the operator to pause in the cutting zone. The appropriate rate depends on the product, blade condition, and saw design. Train operators to respond to changes in sound, resistance, and cut quality by stopping and checking the setup rather than increasing force.

4. Control long, irregular, and bone-in pieces

Long pieces need support at both the infeed and outfeed sides so their weight does not pull the cut out of square. Irregular items may need an approved fixture, a stable orientation, or a preliminary cut to create a flat contact surface. With bone-in products, choose a direction that keeps the item stable and follows the required portion specification. Do not attempt to rotate or reposition a product while it is in contact with a moving blade.

5. Manage the last piece safely

As the remaining piece becomes shorter, it may no longer be safely controlled by hand. Use the supplied pusher or another approved accessory and follow the machine manual. If a desired end piece cannot be safely held, stop and use an alternative approved cutting method. Yield goals should never override safe handling.

A Repeatable Portion-Cutting Workflow

A documented workflow helps different operators achieve the same result and makes deviations easier to identify. The exact records will vary by business, product, and local requirements, but the following sequence is a practical starting point.

  1. Review the production specification. Confirm the product identity, target portion dimension or weight range, cut orientation, packaging plan, and any inspection requirement.
  2. Prepare a controlled batch. Use product in the planned cutting condition and group pieces that have similar size and shape.
  3. Inspect and set up the saw. Complete the pre-use check, fit or verify the blade as required, set the guide, and ensure the work area is clean and clear.
  4. Run and measure test cuts. Inspect the cut face and measure thickness, or weigh portions when weight is the controlling specification. Adjust the setup before the main run.
  5. Cut using one repeatable motion. Keep each item against the guide, use steady feed pressure, and place cut portions in the designated clean container or transfer area.
  6. Verify during the run. Check portions at a frequency that suits the process risk and product variation. Recheck after a blade change, guide adjustment, interruption, or change of product condition.
  7. Separate nonconforming pieces. Identify off-spec portions immediately so they can be reworked, repurposed, or handled according to the site’s procedure.
  8. Clean down and record issues. At the end of the batch, follow the approved cleaning routine and note blade, guide, product, or process issues for the next shift.

If the saw is part of a wider sausage or formed-meat process, consistent portioning should be coordinated with upstream preparation. For example, raw material temperature and cut size can affect subsequent mixing; see guidance on making consistent meat texture with a bowl cutter when planning the full workflow.

Common Causes of Inconsistent Cuts

When portions vary, the source is usually a combination of product condition, setup, blade performance, and operator handling. Address the underlying cause before increasing speed or changing the target setting.

  • Tapered slices: The product may not be held against the fence, the reference face may be uneven, or the product may be unsupported and pulling away during the cut.
  • Variable thickness: Check whether the fence has moved, whether the setting was verified with a measured test cut, and whether operators are using the same product orientation.
  • Ragged or torn surfaces: Review blade condition, product condition, feed method, and whether the item is suitable for the current blade and machine setup.
  • Uneven bone-in portions: Confirm the intended cutting direction, product stability, guide setting, and whether the incoming pieces vary too much in anatomy or size for a single fixed setting.
  • Product slipping or rocking: Stop the run and create a stable face, use an approved holding method, or process the item with another suitable technique. Do not attempt to control an unstable piece by placing hands closer to the blade.
  • Output drifting over time: Look for blade wear, accumulated residue around guides or the fence, loose adjustments, changing product temperature, or inconsistent operator practice.

A simple corrective-action record can be valuable: note the product, time, portion deviation, observed cause, action taken, and result. This creates useful evidence for training and preventive maintenance without relying on memory alone.

Safe, Clean Operation Protects Portion Quality

Clean and organized commercial meat band saw workstation

Safety, sanitation, and cut consistency are closely connected. Residue on the table or guide can affect how product tracks. A worn blade can affect both surface quality and operator control. Poorly organized infeed and outfeed areas can cause operators to rush or reach across the machine. A clean, orderly saw station is therefore part of portion control, not merely an end-of-shift requirement.

Build the following practices into the operating standard:

  • Train only authorized personnel on the specific machine and retain the machine manual at the point of use or in an accessible controlled system.
  • Keep guards, doors, blade protection, guide assemblies, and pushers in place and usable. Never defeat a safety function to save time.
  • Switch off and isolate the machine before cleaning, blade work, adjustment beyond normal operating controls, or clearing a jam, following the applicable lockout or isolation procedure.
  • Use food-safe cleaning chemicals and concentrations that match the site’s sanitation plan and the equipment manufacturer’s guidance. Rinse and dry as required before reassembly.
  • Inspect food-contact areas after cleaning and before production. Ensure removable components are reinstalled correctly.
  • Keep a planned spare blade and maintenance arrangement appropriate for the operation, rather than continuing to cut with a blade that no longer performs acceptably.

For businesses comparing footprints and work patterns, this guide to tabletop versus floor bone saws can help assess how layout, product handling, and cleaning access affect daily operation.

Match the Saw to the Work

Good technique cannot overcome a machine that is unsuitable for the product or production environment. Before purchasing or specifying a commercial meat band saw, define the product range, maximum piece dimensions, proportion of bone-in work, product temperature at cutting, expected operating pattern, available bench or floor space, electrical supply, washdown and cleaning requirements, and local service access.

Also consider the workflow around the saw. There should be enough infeed space to load product safely, sufficient outfeed space to collect portions without obstructing the operator, and a hygienic route to the next stage. A larger machine is not automatically the better choice; the correct decision is the one that supports the product, operator, cleaning method, and daily workload without creating unnecessary complexity.

When discussing a machine with a supplier, provide representative product dimensions and photos where appropriate, describe whether products are boneless, bone-in, chilled, or frozen, and explain the target cut types. This enables a more useful technical discussion about fit, setup, operator workflow, consumables, and after-sales support.
